Pickup Wiring Guide - Bass Pickups

The information on this page can be applied to our: J-Style & P-Style Bass Pickups.

Our Bass pickups use the most standard method of wiring. Each pickup has 2 lead wires. The Black Wire will be used as the Ground. The other wire (Red or White depending on the model) will be the Hot Wire.


  • Bridge Position Pickups will have a Red Hot Wire.
  • Neck Position Pickups will have a White Hot Wire.

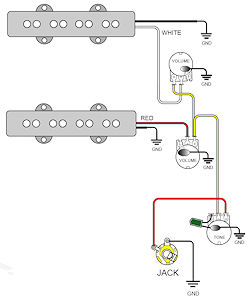

Here is a common Wiring Diagram for this style of Pickup.
