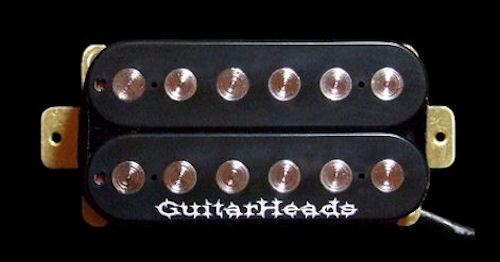

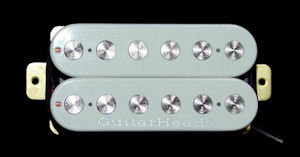

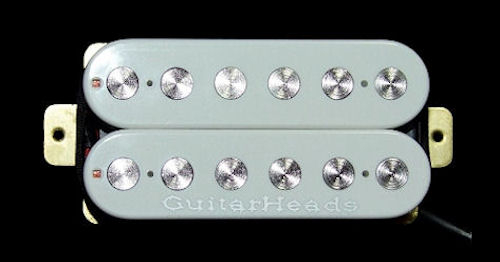

The GuitarHeads Fat Pole Humbucker is both versatile & dynamic, as each pickup is fitted with 12 Oversized Pole Pieces, eliminating "drop out" when bending strings, and is compatible with both Standard or Trem spaced bridges. It's super powerful attack is accompanied by a full range EQ, with strong lows, a slightly scooped midrange for enhanced harmonic response, and a tighter high end. The Fat Pole Humbucker is driven by an Anisotropic Ferrite Magnet (a High-end Ceramic), and is Wax Potted for Microphonic Suppression. These pickups also feature a 5 Conductor Lead, allowing you to Tap the Coils for alternate wiring. Also included are Mounting Screws & Height Adjustment Springs. - Retail List Price: $79.99/Set



Bridge Position Model Neck Position Model
  • DC Resistance: 16.75K Ohms
  • AC Impedance: 8.3Z

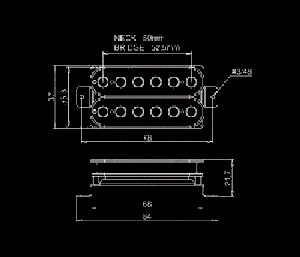

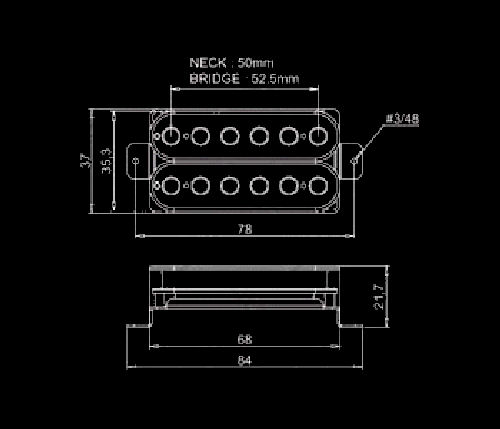

  • Pole Piece Spacing: 52mm
  • DC Resistance: 8.50K Ohms
  • AC Impedance: 4.3Z
  • Pole Piece Spacing: 50mm

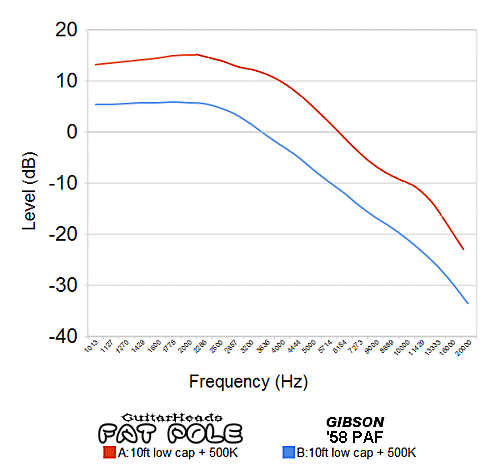

The Tone Frequency of this Pickup is very similar to the traditional EQ of the Gibson PAF, however the Fat Pole delivers more overall output, as well as more "scoop" in the midrange. Click the chart below to see how these 2 pickups compare.


 Click to Enlarge



$29.99Each - $49.99Set
POSITION
COLOR
